AA-201 Stereo Combination Amplifier

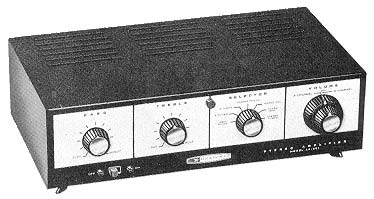

AA-201 Stereo Combination Amplifier


  • Smart, new styling design
  • Separate bass and treble tone controls
  • Clutched volume controls
  • 2 high level inputs

The new Heathkit AA-201 Economy Stereo Amplifier is the money-saving way to introduce stereo into your home…easily and economically.

And the exciting new styling of the AA-201 makes it a special bargain. Black enamel covers the all-metal case and an ivory front panel highlights the control knobs. Designed to fit in tastefully with other Heathkit Hi-Fi/Stereo components in the economy class, you'll find the AA-201 will fit in wherever it is placed.

SPECIFICATIONS—Channels: 2. Power Output: 6 watts (3 w. per channel) Heath Utility Rating. Power response: ± 1 db, 50-20,000 cps at 3 watts output per channel. Harmonic distortion: Less than 3%, 60-20,000 cps at 3 watts per channel. Intermodulation distortion: Less than 3%, 60 and 6,000 cps signals, 4:1. Hum and noise: 65 db below 3 watts output. Input sensitivity: 150 mv for 3 watts output each channel, crystal phono and tuner. Outputs: 4, 8 and 16 ohms. Controls: Dual clutched volume, ganged treble, ganged bass, 7-position selector switch, speaker phasing switch, on-off switch. Tube complement: 2-EL84; 2-7199; 1-EZ81. Power requirements: 117 volts, 50/60 cycles. 75 watts. Color and finish: Black enamel with ivory front panel. Dimensions: 12½" W x 3¼" H x 6¾" D. Shipping Weight: 12 lbs.
